G501-1025-02 | Jacob

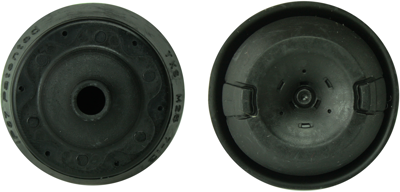

Cable gland, cable Ø 4 to 14 mm, M25, PA/TPE, black, G501-1025-02
Unit Price (€ / pc.)
0.4403 € *
Standard delivery time from the manufacturer is: 3 Weeks
Metric cable bushings, type KLIKSEAL.
With integrated cable strain relief, for panel thickness from 1.5 to 5.0 mm; Material: TPE and polyamide 66. UL certified. Degree of protection: IP 67. Operating temperatures: –20 to +125 °C. Weight: approx. 5.3 g.
Technical attributes (size, cable diameter (CD), outer diameter OD (depending on the material thickness), color): M 25, 4.0 to 14 mm, OD 34.7 to 40 mm, black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| min. cable diameter | 4 mm | |
| Material | PA/TPE | |
| Thread size | M25 | |
| Mounting hole size | 25.5 mm | |
| Wall thickness | 5 mm | |
| max. Cable diameter | 14 mm | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 40169300 |
| Country of origin | SE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
