A-H2-R002-F1-K2-0.1 | Isabellenhütte

Metal film resistor, 2 mΩ, 10 W, ±0.1 %, A-H2-R002-F1-K2-0.1

Order No.: 53E562
EAN: 4099879696380
MPN:
A-H2-R002-F1-K2-0.1
Series: A-H

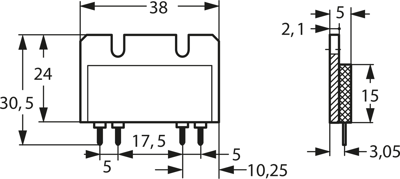

A-H2-R002-F1-K2-0.1 Isabellenhütte Wirewound Resistors Image 1

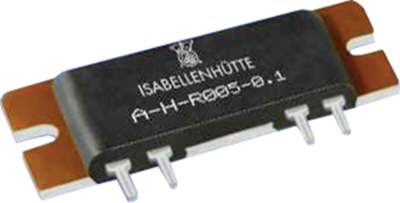

A-H2-R002-F1-K2-0.1 Isabellenhütte Wirewound Resistors Image 2
Image may differ
Unit Price (€ / pc.)
68.4964 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
2,054.89 € *
*incl. VAT plus shipping costs
Subject to prior sale
30 pcs.
68.4964 €

Precision metal film resistor, 10 W. tolerance 0.1 %, series ISA-PLAN, type Isabellenhütte A-H2.F1-K2

With four-wire connection and heatsink plate with mounting holes.

Features

  • Up to 10 W permanent power
  • Low self-heating
  • RoHS compliant

Applications

  • Measurement equipment
  • Reference resistors in laboratories
  • Current sources
  • Laboratory power supplies
Technical specifications
Version precision metal film resistor
ohmic resistance 2 mΩ
Width 5 mm
Assembly THT
Isolation voltage 500 V
Height 10 mm
Temperature coefficient 30 ppm/K
Length 46 mm
Power 10 W
Tolerance ±0.1 %
nominal load capacity without cooling surface 10 W
max. operating temperature 125 °C
Design radial
min. operating temperature -55 °C
Logistics
Customs tariff number 85332100
Country of origin DE
Original Packaging Tray with 50 pieces
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
