VMS-R010-1.0 | Isabellenhütte

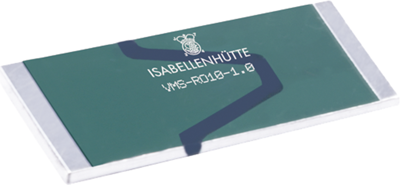

Resistor, metal foil, SMD 2512 (6330), 10 mΩ, 3 W, ±1 %, VMS-R010-1.0

Order No.: 09E701
EAN: 4099879203564
MPN:
VMS-R010-1.0
Series: VMS
VMS-R010-1.0 Isabellenhütte SMD Resistors
Image may differ
Unit Price (€ / pc.)
2.1777 € *
Available: 338 pcs.
Total Price:
2.18 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1777 €
25 pcs.
1.8564 €
100 pcs.
1.7017 €
250 pcs.
1.6184 €
1000 pcs.
1.4756 €
*incl. VAT plus shipping costs
Subject to prior sale

SMD precision resistor, size 2512, 3.0 W, tolerance 1.0 %, series ISA-PLAN, type Isabellenhütte VMS.

Suitable for use as measuring resistance in switching mode power supplies, power modules, frequency converters, controllers and power hybrids

Technical specifications
Temperature coefficient ±20 ppm/K
Technology metal foil
Width 3 mm
Height 0.4 mm
Power 3 W
Length 6.35 mm
Design SMD 2512 (6330)
min. operating temperature -65 °C
Tolerance ±1 %
max. operating temperature 170 °C
ohmic resistance 10 mΩ
Logistics
Country of origin DE
Customs tariff number 85332100
Original Packaging Reel with 9,000 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
