SMP-R500-1.0 | Isabellenhütte

Resistor, metal foil, SMD 2010 (5025), 500 mΩ, 2 W, ±1 %, SMP-R500-1.0

Order No.: 09E374
EAN: 4099879202727
MPN:
SMP-R500-1.0
Series: SMP
SMP-R500-1.0 Isabellenhütte SMD Resistors Image 1
SMP-R500-1.0 Isabellenhütte SMD Resistors Image 2
Image may differ
Unit Price (€ / pc.)
2.0587 € *
Available: 1,229 pcs.
Total Price:
2.06 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0587 €
10 pcs.
1.4756 €
100 pcs.
1.2614 €
500 pcs.
1.0948 €
1000 pcs.
0.9877 €
*incl. VAT plus shipping costs
Subject to prior sale

SMD precision resistor, size 2010, 2.0 W, tolerance 1.0 %, series ISA-PLAN, type Isabellenhütte SMP.

Suitable for use as shunt resistors in power hybrids, power modules, or switching mode power supplies

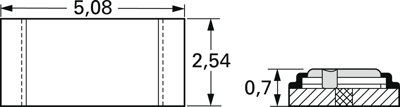

Technical specifications
Filter Property Value
max. operating temperature 170 °C
Width 2.5 mm
ohmic resistance 500 mΩ
Height 0.7 mm
Temperature coefficient ±50 ppm/K
Power 2 W
Technology metal foil
Tolerance ±1 %
min. operating temperature -55 °C
Design SMD 2010 (5025)
Length 5.08 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85332100
Original Packaging Reel with 5,000 pieces
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
