BVR-Z-R0002-1 | Isabellenhütte

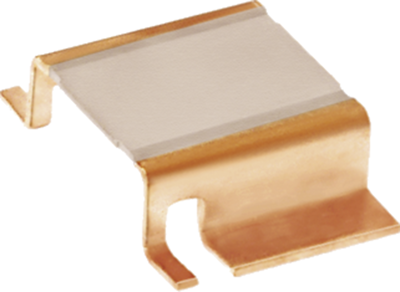

Resistor, metal plate, SMD 4026, 200 µΩ, 5 W, ±1 %, BVR-Z-R0002-1
Unit Price (€ / pc.)
2.4038 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
240.38 € *
Price list
Quantity
Price per unit*
100 pcs.
2.4038 €
1000 pcs.
2.0468 €
*incl. VAT plus shipping costs
Subject to prior sale
Resistor, BVR-Z-R0002-1, ISABELLENH
The BVR-Z-R0002-1 is a precision resistor with high current applications for the automotive market and current sensor for power hybrid applications.
Features
- Heavy copper connectors
- Excellent long-term stability
- RoHS compliant
Applications
- Frequency converters
- Power modules
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 200 µΩ | |
| max. operating temperature | 170 °C | |
| Length | 6.9 mm | |
| min. operating temperature | -65 °C | |
| Height | 2.4 mm | |
| Technology | metal plate | |
| Design | SMD 4026 | |
| Power | 5 W | |
| Temperature coefficient | ±20 ppm/K | |
| Tolerance | ±1 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Original Packaging | Reel with 1,400 pieces |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
