CRL260-13.0-300-BB | IS-Cabletec

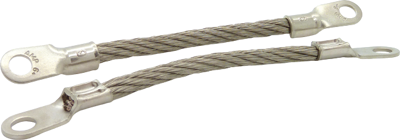

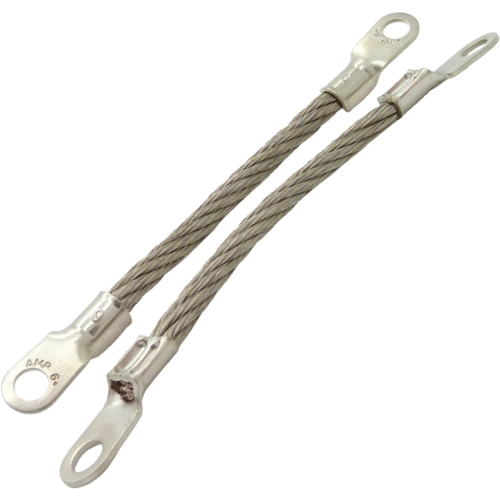

Ground strap, assembled, copper, nickel-plated, 13.0 mm², (L) 300 mm, hole Ø 5 mm, CRL260-13.0-300-BB
Unit Price (€ / pc.)
25.0971 € *
Standard delivery time from the manufacturer is: 14 Weeks
Ground strap, CRL260-13.0-300-BB, IS-Cabletec
The CRL260-13.0-300-BB is a nickel plated copper bonding lead that offers exceptional levels of flexing, with outstanding resistance to corrosion and salt attack. When tested to the flex endurance, it withstands over 5 million cycles, outperforming other aerospace standard leads. This product is ideal for dynamic applications in exposed areas such as external aircraft doors and flaps.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 300 mm | |
| Material | copper, nickel-plated | |
| Version | ground strap, assembled | |
| Hole size | 5 mm | |
| Cable cross-section | 13.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74130000 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
