CFBA4199-004-N-1.4-080-J | IS-Cabletec

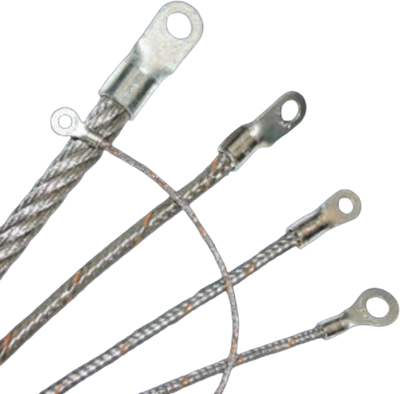

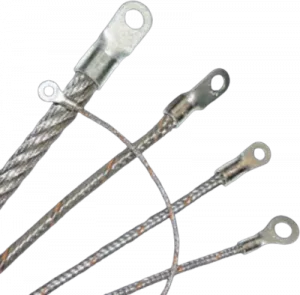

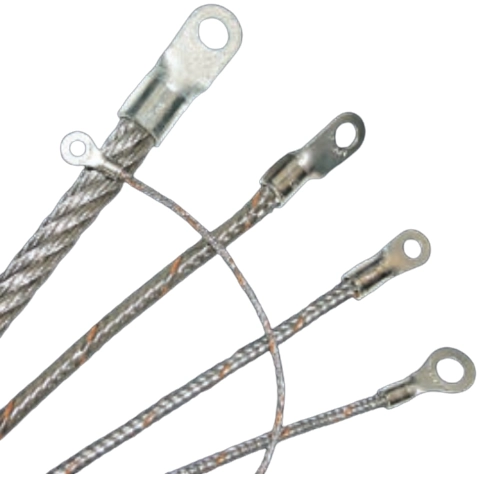

Ground strap, assembled, copper, nickel-plated, 1.4 mm², (L) 80 mm, hole Ø 6.73 mm/5 mm, CFBA4199-004-N-1.4-080-J

Order No.: 91F7024
EAN: 4099891556020
MPN:
CFBA4199-004-N-1.4-080-J
Series: CFBA4199
CFBA4199-004-N-1.4-080-J IS-Cabletec Grounding Strips
Image may differ
Unit Price (€ / pc.)
7.8183 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
195.46 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 pcs.
7.8183 €

Ground strap, CFBA4199-004-N-1.4-080-J, IS-Cabletec

The CFBA4199-004-N-1.4-080-J is a nickel plated round bonding lead designed specifically for aerospace and military applications. This product has undergone extensive mechanical and electrical testing, including flex testing to 250,000 cycles, sinusoidal and random vibration cycles, salt mist and temperature cycling.

Technical specifications
Filter Property Value
Hole size 6.73 mm/5 mm
Material copper, nickel-plated
Version ground strap, assembled
Length 80 mm
Cable cross-section 1.4 mm²
Logistics
Property Value
Country of origin GB
Customs tariff number 74130000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
