TIC246D | International Power Semiconductor

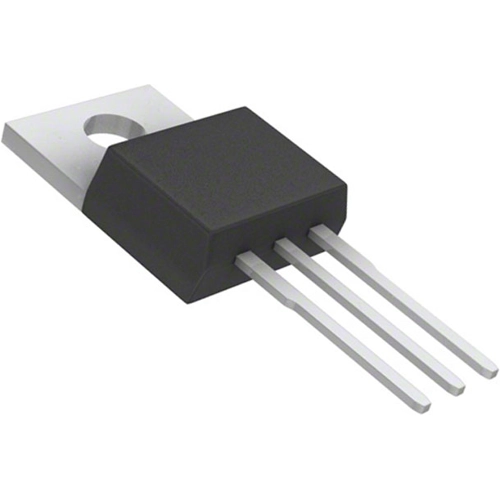

Triac, 400 V (RRM), TO-220, International Power Semiconductor TIC246D
Unit Price (€ / pc.)
3.1535 € *
Available: 154 pcs.
Total Price:
3.15 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1535 €
50 pcs.
2.6775 €
100 pcs.
2.5704 €
200 pcs.
2.4752 €
1000 pcs.
2.2253 €
*incl. VAT plus shipping costs
Subject to prior sale
Silicon triac, TIC246D, IPS
Features
- High current triac
- 16 A RMS
- 70 A peak
- Glass Passivated Wafer
- Compliance to ROHS
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Gate trigger voltage | 2 V | |
| Number of pins | 3 | |
| Enclosure | TO-220 | |
| On-State Voltage | 1.7 V | |
| Voltage V RRM (peak reverse voltage) | 400 V | |
| max. operating temperature | 110 °C | |
| min. operating temperature | -40 °C | |
| Version | triac | |
| Assembly | THT | |
| Gate trigger current | 50 mA | |
| max. holding current | 40 mA | |
| Rated current | 16 A |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 50 pieces |
| Country of origin | PH |
| Customs tariff number | 85413000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
