BT139-800 | International Power Semiconductor

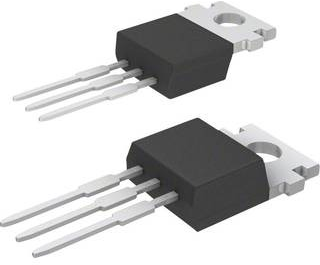

Triac, TO-220AB, International Power Semiconductor BT139-800
Unit Price (€ / pc.)
1.0353 € *
Available: 33 pcs.
Available in 5 Days: 1,630 pcs. - if ordered today
Total Price:
1.04 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0353 €
10 pcs.
0.9163 €
100 pcs.
0.8330 €
1000 pcs.
0.7497 €
*incl. VAT plus shipping costs
Subject to prior sale
Triac, BT139-800, IPS
The BT139-800 is a passivated, sensitive gate triac in a plastic envelope, intended for use in general purpose bidirectional switching and phase control applications. This device is intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Enclosure | TO-220AB | |
| Version | triac | |
| Number of pins | 3 | |
| Rated current | 16 A | |
| On-State Voltage | 1.6 V | |
| max. holding current | 50 mA | |
| Gate trigger voltage | 1.5 V | |
| Gate trigger current | 35 mA | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Original Packaging | Bulk with 50 pieces |
| Customs tariff number | 85413000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
