155431.006D05 | Inter Control
Thermal fuse, 298 °C, 230 V, 15 A
Unit Price (€ / pc.)
4.3197 € *
Available: 137 pcs.
Total Price:
4.32 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3197 €
10 pcs.
3.7961 €
100 pcs.
3.3320 €
250 pcs.
3.2011 €
1000 pcs.
2.9869 €
*incl. VAT plus shipping costs
Subject to prior sale

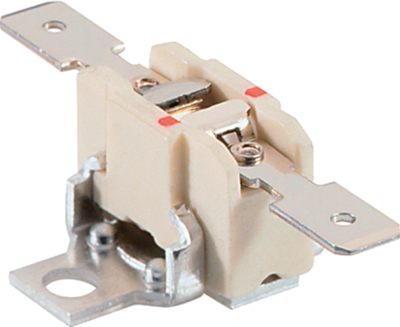

Thermal fuses, type Inter Control Minimelt Plus.

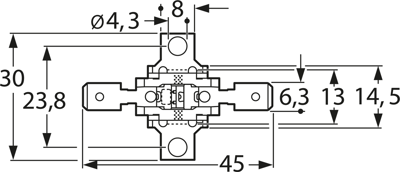

Features: high-speed response, ceramic insulator, high continuous operating temperature. Rated voltage to VDE/UL: 230/120 V. Rated current to VDE/UL: 13.5/15 A. Cut-off current to VDE/UL: 20.3/22.5 A. Leakage current resistance: PTI >250. Certifications: VDE EN 60691, UL 1020. Height: 12.7 mm.
Technical attributes (type, rated temperature, high continuous operating temperature): 155431.006D05, 298 °C, 260 °C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 15 A | |
| Rated temperature | 298 °C | |
| Rated voltage (AC) | 230 V | |
| Limit temperature | 500 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90321080 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
