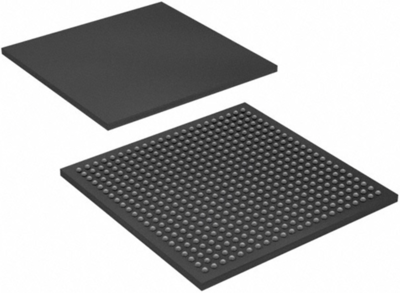

EP4CE15F23I7N | INTEL
FPGA, Cyclone IV E, INTEL EP4CE15F23I7N, FBGA-484
Unit Price (€ / pc.)
60.7495 € *
Available in 5 Days: 31 pcs. - if ordered today
Total Price:
60.75 € *
Price list
Quantity
Price per unit*
1 pcs.
60.7495 €
60 pcs.
56.0728 €
*incl. VAT plus shipping costs
Subject to prior sale
FPGA, EP4CE15F23I7N, Intel
The EP4CE15F23I7N is a device that is implemented in a system, that is rated according to a set of defined parameters. That can maintain the highest possible performance and reliability.
Features
- Preliminary characteristics are created using simulation results, process data, and other known parameters
- 1.2-V operation supply voltage for internal logic
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | FBGA-484 | |
| Assembly | SMD | |
| Number of LABs/CLBs | 963 | |
| Number of logical elements | 15408 | |
| Memory size | 516.096 kbit | |
| Number of I/Os | 343 | |
| Voltage | 1.15-1.25 V | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Tray with 60 pieces |
| MSL | MSL 3 |
| Customs tariff number | 85423990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| RoHS conform | Yes |
| SVHC free | Yes |
