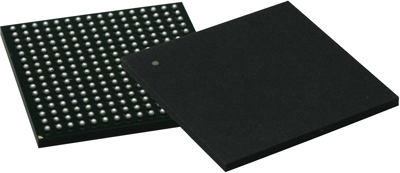

EP4CE15F17I7N | INTEL
FPGA, Cyclone IV E, INTEL EP4CE15F17I7N, FBGA-256
Unit Price (€ / pc.)
85.8109 € *
Standard delivery time from the manufacturer is: 16 Weeks
Logic module, EP4CE15F17I7N, INTEL
Features
- FPGA with low power consumption
- Increased bandwidth
- With 3.125 Gbps transceiver
- Endpoint and root port configuration
- Serial Advanced Technology Attachment (SATA)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | FBGA-256 | |
| Assembly | SMD | |
| Number of LABs/CLBs | 963 | |
| Number of logical elements | 15408 | |
| Memory size | 516.096 kbit | |
| Number of I/Os | 165 | |
| Voltage | 1.15-1.25 V | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | KR |
| MSL | MSL 3 |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
