EP4CE115F23I7N | INTEL

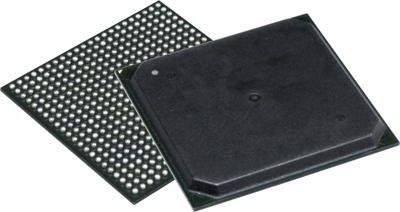

FPGA, Cyclone IV E, INTEL EP4CE115F23I7N, FBGA-484
Unit Price (€ / pc.)
758.6964 € *
Standard delivery time from the manufacturer is: 16 Weeks
FPGAs, type Altera Cyclone EP.
Technical attributes (type, number of logic array blocks (LABs), number of I/Os, package): EP4CE115F23I7N, 7155 LABs, 280 I/Os, FBGA-484
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | FBGA-484 | |
| Assembly | SMD | |
| Number of LABs/CLBs | 7155 | |
| Number of logical elements | 114480 | |
| Memory size | 3.981312 Mbit | |
| Number of I/Os | 280 | |
| Voltage | 1.15-1.25 V | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423990 |
| MSL | MSL 3 |
| Original Packaging | Tray with 60 pieces |
| Country of origin | KR |
Compliance
| Property | Value |
|---|---|
| Substance description | 4,4'-isopropylidenediphenol |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
