EP3C16F484I7N | INTEL

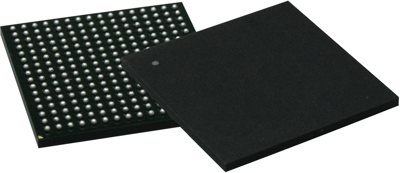

FPGA Cyclone® III Family 437.5MHz EP3C16F484I7N
Unit Price (€ / pc.)
144.9420 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
1,449.42 € *
Price list
Quantity
Price per unit*
10 pcs.
144.9420 €
60 pcs.
133.7917 €
*incl. VAT plus shipping costs
Subject to prior sale
FPGA, EP3C16F484I7N
An FPGA is a semiconductor device consisting of a matrix of Configurable Logic Blocks (CLBs) connected through programmable interconnects. The user determines these interconnections by programming SRAM. A CLB can be simple (AND, OR gates, etc) or complex (a block of RAM). The FPGA allows changes to be made to a design even after the device is soldered into a PCB.
Technical specifications
| Enclosure | FBGA-484 | |
| Assembly | SMD | |
| Number of LABs/CLBs | 963 | |
| Number of logical elements | 15408 | |
| Memory size | 516.096 kbit | |
| Number of I/Os | 346 | |
| Voltage | 1.15-1.25 V | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Country of origin | US |
| Original Packaging | Tray with 60 pieces |
| Customs tariff number | 85423990 |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
