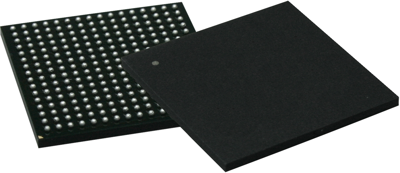

EP3C16F256C8N | INTEL
FPGA, Cyclone III, INTEL EP3C16F256C8N, FBGA-256
Unit Price (€ / pc.)
79.135 € *
Standard delivery time from the manufacturer is: 26 Weeks
FPGA, EP3C16F256C8N, Altera
An FPGA is a semiconductor device consisting of a matrix of Configurable Logic Blocks (CLBs) connected through programmable interconnects. The user determines these interconnections by programming SRAM. A CLB can be simple (AND, OR gates, etc) or complex (a block of RAM). The FPGA allows changes to be made to a design even after the device is soldered into a PCB.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | FBGA-256 | |
| Assembly | SMD | |
| Number of LABs/CLBs | 963 | |
| Number of logical elements | 15408 | |
| Memory size | 516.096 kbit | |
| Number of I/Os | 168 | |
| Voltage | 1.15-1.25 V | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | KR |
| Original Packaging | Tray with 90 pieces |
| MSL | MSL 3 |
| Customs tariff number | 85423990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Melamine, 4,4'-isopropylidenediphenol |
| RoHS conform | Yes |
| SVHC free | No |
