EP3C10F256C8N | INTEL

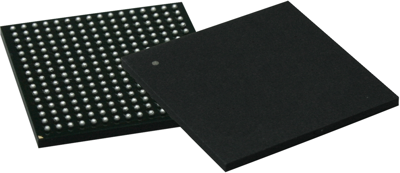

FPGA Cyclone® III Family 402MHz 65nm 1.2V, EP3C10F256C8N
Unit Price (€ / pc.)
48.8138 € *
Available in 5 Days: 60 pcs. - if ordered today
Total Price:
48.81 € *
Price list
Quantity
Price per unit*
1 pcs.
48.8138 €
90 pcs.
45.0534 €
*incl. VAT plus shipping costs
Subject to prior sale
Cyclone device, EP3C10F256C8N, Intel
Cyclone III device includes operating conditions and power consumption characteristics. Also includes transceiver specifications, core and periphery performance.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | FBGA-256 | |
| Assembly | SMD | |
| Number of LABs/CLBs | 645 | |
| Number of logical elements | 10320 | |
| Memory size | 423.936 kbit | |
| Number of I/Os | 182 | |
| Voltage | 1.15-1.25 V | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 3 |
| Customs tariff number | 85423990 |
| Original Packaging | Tray with 90 pieces |
Compliance
| Property | Value |
|---|---|
| Substance description | Melamine |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
