5CEBA2F23C8N | INTEL

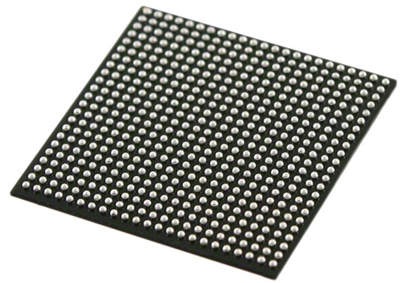

FPGA, Cyclone V E, INTEL 5CEBA2F23C8N, FBGA-484
Unit Price (€ / pc.)
59.4762 € *
Standard delivery time from the manufacturer is: 1 Week
FPGA, 5CEBA2F23C8N, Intel
The 5CEBA2F23C8N is designed to simultaneously accommodate the shrinking power consumption, cost, and time-to-market requirements and the increasing bandwidth requirements for high-volume and cost-sensitive applications.
Features
- High-performance FPGA fabric
- Low-power high-speed serial interface
- On-chip RAM and boot ROM
- Tamper protection—comprehensive design protection to protect your valuable IP investments
- Dynamic reconfiguration of the FPGA
Applications
- Low precision fixed point for video applications
- Wireless networks
- Automotive networks
- Military networks
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | FBGA-484 | |
| Assembly | SMD | |
| Number of LABs/CLBs | 9434 | |
| Number of logical elements | 25000 | |
| Memory size | 2.002944 Mbit | |
| Number of I/Os | 224 | |
| Voltage | 1.07-1.13 V | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Original Packaging | Tray with 60 pieces |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
