EPM7128SQC100-10N | INTEL
CPLD MAX® 7000 Family 2.5K Gates 100MHz 5V

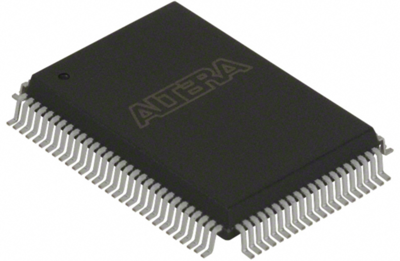

Complex programmable logic device, EPM7128SQC100-10N, Intel
The EPM7128SQC100-10N is a high-density, high performance device based on second-generation architecture it is fabricated with advanced CMOS technology.
Features
- Programmable macrocell flipflops with individual clear
- Programmable security bit for protection of proprietary designs
- Programmable power-saving mode for a reduction of over 50% in each macrocell
- Open-drain output option
- PCI-compatible
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | BQFP-100 | |
| Assembly | SMD | |
| Number of I/Os | 84 | |
| Propagation Delay | 10 s | |
| Voltage | 4.75-5.25 V | |
| Number of logical elements | 8 | |
| Number of macro cells | 128 | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Tray with 66 pieces |
| MSL | MSL 3 |
| Customs tariff number | 85423990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
| RoHS conform | Yes |
