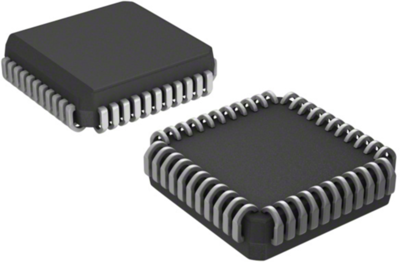

EPM7064SLC44-10N | INTEL
CPLD MAX® 7000S Family 1.25K Gates 100MHz 5V
Complex programmable logic device, EPM7064SLC44-10N, Intel
The EPM7064SLC44-10N is a high-density, high performance device based on second-generation architecture it is fabricated with advanced CMOS technology.
Features
- Programmable interconnect array (PIA) continuous routing structure for fast, predictable performance
- Programmable security bit for protection of proprietary designs
- Programmable power-saving mode for a reduction of over 50% in each macrocell
- Open-drain output option
- PCI-compatible
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | PLCC-44 | |
| Assembly | SMD | |
| Number of I/Os | 36 | |
| Propagation Delay | 10 s | |
| Voltage | 4.75-5.25 V | |
| Number of logical elements | 4 | |
| Number of macro cells | 64 | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 3 |
| Customs tariff number | 85423990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
| RoHS conform | Yes |
