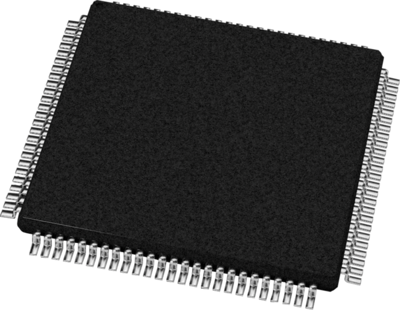

EPM570T100I5N | INTEL
CPLD MAX® II Family 201.1MHz 0.18um 2.5V/3.3V, EPM570T100I5N
Unit Price (€ / pc.)
18.6116 € *
Available in 5 Days: 96 pcs. - if ordered today
Total Price:
18.61 € *
Price list
Quantity
Price per unit*
1 pcs.
18.6116 €
90 pcs.
17.1836 €
*incl. VAT plus shipping costs
Subject to prior sale
Complex programmable logic device, EPM570T100I5N, INTEL
The EPM570T100I5N is an instant-on, non-volatile Complex programmable logic device, it is based on a 0.18-µm, 6-layer-metal-flash process, with densities from 240 to 2,210 logic elements (LEs) (128 to 2,210 equivalent macrocells) and non-volatile storage of 8 Kbits. This device offers high I/O counts, fast performance, and reliable fitting versus other Complex programmable logic device architectures.
Features
- Instant-on, non-volatile architecture
- Provides fast propagation delay and clock-to-output times
- Bus-friendly architecture
- Supports hot-socketing
- Provides four global clocks with two clocks available per logic array block
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | TQFP-100 | |
| Assembly | SMD | |
| Number of I/Os | 76 | |
| Propagation Delay | 5.4 s | |
| Voltage | 2.5-3.3 V | |
| Number of logical elements | 570 | |
| Number of macro cells | 440 | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423990 |
| Original Packaging | Tray with 90 pieces |
| Country of origin | PH |
| MSL | MSL 3 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
