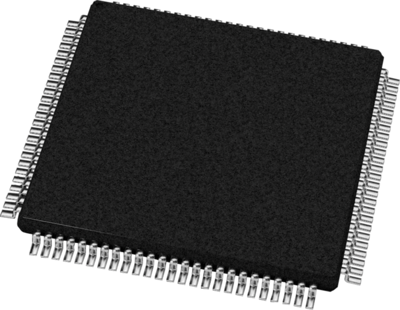

EPM240T100C5N | INTEL
CPLD MAX® II Family 201.1MHz 0.18um 2.5V/3.3V, EPM240T100C5N
Unit Price (€ / pc.)
19.6707 € *
Available: 1,781 pcs.
Total Price:
19.67 € *
Price list
Quantity
Price per unit*
1 pcs.
19.6707 €
50 pcs.
18.8139 €
100 pcs.
17.7905 €
250 pcs.
16.8623 €
500 pcs.
16.3863 €
*incl. VAT plus shipping costs
Subject to prior sale
Complex programmable logic device, EPM240T100C5N, INTEL
The EPM240T100C5N is an instant-on, non-volatile Complex programmable logic device, it is based on a 0.18-µm, 6-layer-metal-flash process, with densities from 240 to 2,210 logic elements (LEs) (128 to 2,210 equivalent macrocells) and non-volatile storage of 8 Kbits. This device offers high I/O counts, fast performance, and reliable fitting versus other Complex programmable logic device architectures.
Features
- Instant-on, non-volatile architecture
- Provides fast propagation delay and clock-to-output times
- Bus-friendly architecture
- Supports hot-socketing
- Provides four global clocks with two clocks available per logic array block
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | TQFP-100 | |
| Assembly | SMD | |
| Number of I/Os | 80 | |
| Propagation Delay | 4.7 s | |
| Voltage | 2.5-3.3 V | |
| Number of logical elements | 240 | |
| Number of macro cells | 192 | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85423990 |
| MSL | MSL 3 |
| Original Packaging | Tray with 90 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
