IS62C256AL-45ULI | Integrated Silicon Solution INC

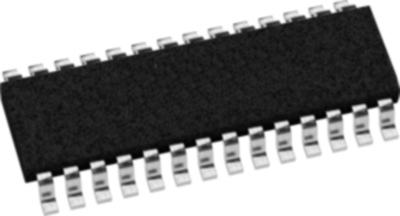

SRAM, 256 kbit, SOIC-28, Integrated Silicon Solution INC IS62C256AL-45ULI
Unit Price (€ / pc.)
1.8802 € *
Available in 5 Days: 860 pcs. - if ordered today
CMOS static RAM, IS62C256AL-45ULI, ISSI
The IS62C256AL-45ULI is a low power, 32,768 word by 8-bit CMOS static RAM. When CE is high (deselected), the device assumes a standby mode at which the power dissipation can be reduced down to 150 µW at CMOS input levels. Easy memory expansion is provided by using an active low chip select (CE) input and an active low output enable (OE) input. The active low write enable (WE) controls both writing and reading of the memory.
Features
- Low standby power
- Fully static operation: no clock or refresh required
- TTL compatible inputs and outputs
- Single 5V power supply
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOIC-28 | |
| Assembly | SMD | |
| Memory size | 256 kbit | |
| Voltage | 4.5-5.5 V | |
| Access time | 45 s | |
| Clock frequency | 22 MHz | |
| Technology | SRAM | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SE |
| Original Packaging | Tray with 120 pieces |
| MSL | MSL 3 |
| Customs tariff number | 85423245 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
