IS62C256AL-45TLI-TR | Integrated Silicon Solution INC

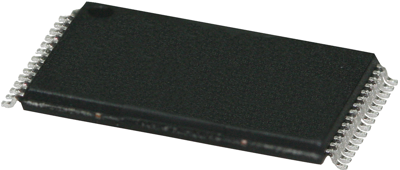

SRAM, 256 kbit, TSSOP-28, Integrated Silicon Solution INC IS62C256AL-45TLI-TR
Unit Price (€ / pc.)
1.4161 € *
Standard delivery time from the manufacturer is: 8 Weeks
CMOS static RAM, IS62C256AL-45TLI-TR, ISSI
The IS62C256AL-45TLI-TR is a low power, 32,768 word by 8-bit CMOS static RAM. When CE is high (deselected), the device assumes a standby mode at which the power dissipation can be reduced down to 150 µW (typical) at CMOS input levels. Easy memory expansion is provided by using an active low chip delect (CE) input and an active low output enable (OE) input. The active low write enable (WE) controls both writing and reading of the memory.
Features
- Fully static operation: no clock or refresh required
- TTL compatible inputs and outputs
- Single 5V power supply
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Memory size | 256 kbit | |
| Assembly | SMD | |
| Voltage | 4.5-5.5 V | |
| max. operating temperature | 85 °C | |
| Access time | 45 s | |
| Technology | SRAM | |
| Enclosure | TSSOP-28 | |
| min. operating temperature | -40 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 2,000 pieces |
| Customs tariff number | 85423245 |
| MSL | MSL 2 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
