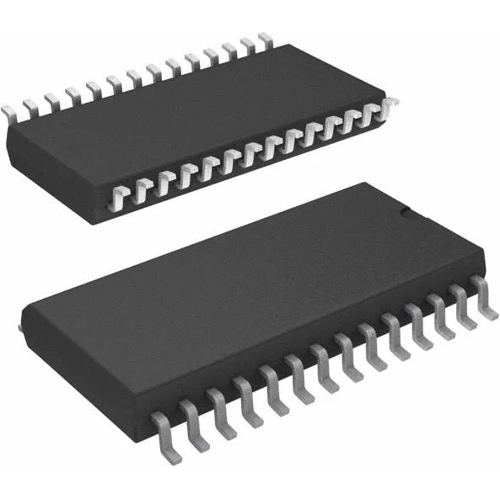

IS62C256AL-25ULI | Integrated Silicon Solution INC

Low Power CMOS Static Ram, IS62C256AL-25ULI, Integrated Silicon Solution INC

The IS62C256AL-25ULI is a low power, 32,768 word by 8-bit CMOS static RAM. It is fabricated using ISSI's high-performance, low power CMOS technology. When CE is HIGH (deselected), the device assumes a standby mode at which the power dissipation can be reduced down to 150 µW (typical) at CMOS input levels. Easy memory expansion is provided by using an active LOW Chip Select (CE) input and an active LOW Output Enable (OE) input. The active LOW Write Enable (WE) controls both writing and reading of the memory.

Features

• Low standby power
• Fully static operation: no clock or refresh required
• TTL compatible inputs and outputs
