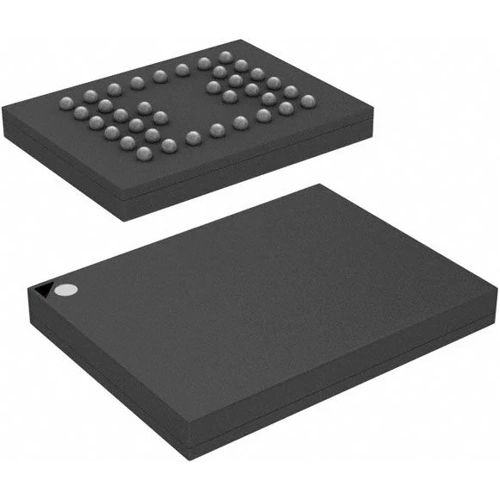

IS61WV5128EDBLL-10BLI | Integrated Silicon Solution INC
SRAM 4MBIT PARALLEL 36TFBGA IS61WV5128EDBLL-10BLI
Order No.: 54S0374
MPN:
IS61WV5128EDBLL-10BLI
Unit Price (€ / pc.)
4.5528 € *
Standard delivery time from the manufacturer is: 1 Week
High-Speed Asynchronous Cmos Static Ram, IS61WV5128EDBLL-10BLI, Integrated Silicon Solution INC
The IS61WV5128EDBLL-10BLI is a high-speed, 4,194,304-bit static RAM organized as 524,288 words by 8 bits. It is fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields high-performance and low power consumption device. When CE is HIGH (deselected), the device assumes a standby mode at which the power dissipation can be reduced down with CMOS input levels. Easy memory expansion is provided by using Chip Enable and Output Enable inputs, CE and OE. The active LOW Write Enable (WE) controls both writing and reading of the memory.
Features
- Single power supply
- Three state outputs
- Industrial and Automotive temperature support
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | TFBGA-36 | |
| Assembly | SMD | |
| Memory size | 4 Mbit | |
| Voltage | 2.4-3.6 V | |
| Access time | 10 s | |
| Technology | SRAM | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| MSL | MSL 3 |
| Customs tariff number | 85423261 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
