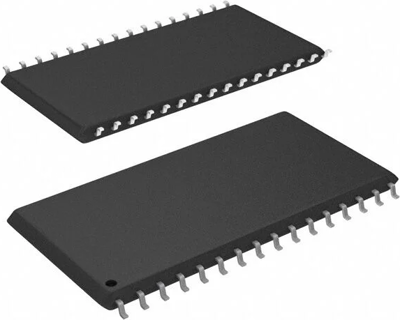

IS61WV1288EEBLL-10TLI | Integrated Silicon Solution INC
SRAM 1MBIT PAR 32TSOP II IS61WV1288EEBLL-10TLI
Order No.: 54S0038
MPN:
IS61WV1288EEBLL-10TLI
Unit Price (€ / pc.)
2.3808 € *
Standard delivery time from the manufacturer is: 1 Week
Low power, IS61WV1288EEBLL-10TLI, Integrated Silicon Solution INC
The IS61WV1288EEBLL-10TLI is a high-speed, 1,048,576-bit static RAMs organized as 131,072 words by 8 bits. It is fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields high-performance and low power consumption devices. When CE is HIGH (deselected), the device assumes a standby mode at which the power dissipation can be reduced down with CMOS input levels.
Features
- Single power supply
- Three state outputs
- Industrial and Automotive temperature support
- Error Detection and Error Correction
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOIC-32 | |
| Assembly | SMD | |
| Memory size | 1 Mbit | |
| Voltage | 2.4-3.6 V | |
| Access time | 10 s | |
| Technology | SRAM | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| MSL | MSL 3 |
| Customs tariff number | 85423261 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
