IS61C6416AL-12TLI-TR | Integrated Silicon Solution INC

SRAM 1 Mbit, TSOP-44, IS61C6416AL-12TLI-TR

Order No.: 53S7022
EAN: 4099879150806
MPN:
IS61C6416AL-12TLI-TR
IS61C6416AL-12TLI-TR Integrated Silicon Solution INC Memory ICs

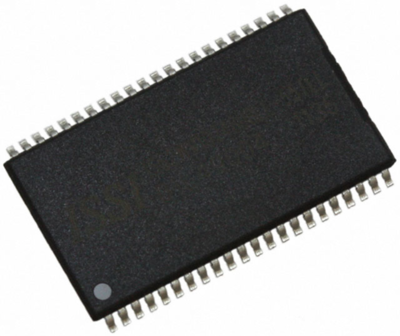

Image may differ
Unit Price (€ / pc.)
2.7846 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
2,784.60 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
2.7846 €

CMOS static RAM, IS61C6416AL-12TLI-TR, ISSI

The IS61C6416AL-12TLI-TR is a high-speed, 1,048,576-bit static RAM organized as 65,536 words by 16 bits. This highly reliable process coupled with innovative circuit design techniques, yields access times as fast as 12 ns with low power consumption. When CE is high (deselected), the device assumes a standby mode at which the power dissipation can be reduced down with CMOS input levels. Easy memory expansion is provided by using chip enable and output enable inputs, CE and OE. The active low write enable (WE) controls both writing and reading of the memory. A data byte allows Upper Byte (UB) and Lower Byte (LB) access.

Features

  • TTL compatible interface levels
  • Single 5V ± 10% power supply
  • Fully static operation: no clock or refresh required
Technical specifications
Assembly SMD
Enclosure TSOP-44
Technology SRAM
Memory size 1 Mbit
Voltage 4.5-5.5 V
min. operating temperature -40 °C
Access time 12 s
max. operating temperature 85 °C
Logistics
Customs tariff number 85423231
MSL MSL 3
Original Packaging Reel with 1,000 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
