IS61C256AL-12TLI | Integrated Silicon Solution INC

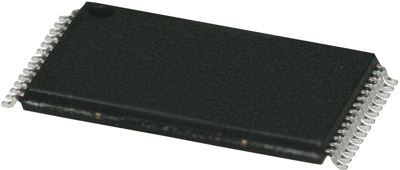

SRAM, 256 kbit, TSSOP-28, Integrated Silicon Solution INC IS61C256AL-12TLI
Unit Price (€ / pc.)
1.4994 € *
Standard delivery time from the manufacturer is: 8 Weeks
SRAM, IS61C256AL-12TLI, ISSI
The ISSI IS61C256AL is a very high-speed, low power, 32,768 word by 8-bit static RAMs. It is fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields access times as fast as 10 ns maximum.
Features
- High-speed access time: 10, 12 ns
- CMOS Low Power Operation
- Fully static operation: no clock or refresh required
- Lead-free available
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | TSSOP-28 | |
| Assembly | SMD | |
| Memory size | 256 kbit | |
| Voltage | 4.5-5.5 V | |
| Access time | 12 s | |
| Clock frequency | 83 MHz | |
| Technology | SRAM | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SE |
| Original Packaging | Tray with 234 pieces |
| MSL | MSL 3 |
| Customs tariff number | 85423245 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
