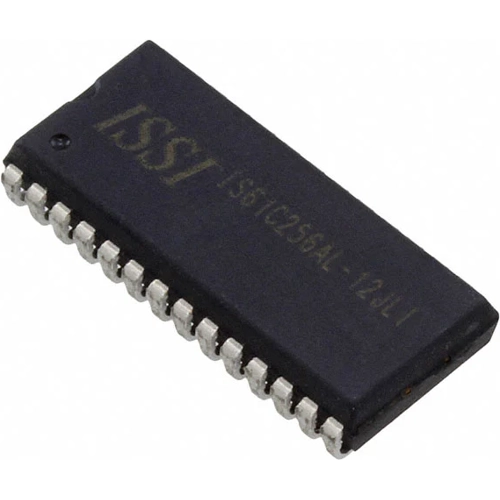

IS61C256AL-12JLI-TR | Integrated Silicon Solution INC

High-speed CMOS Static Ram, IS61C256AL-12JLI-TR, Integrated Silicon Solution INC

The IS61C256AL-12JLI-TR is a very high-speed, low power, 32,768 word by 8-bit static RAMs. It is fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields access times as fast as 10 ns maximum. When CE is HIGH (deselected), the device assumes a standby mode at which the power dissipation can be reduced down to 150 µW (typical) with CMOS input levels. Easy memory expansion is provided by using an active LOW Chip Enable (CE) input and an active LOW Output Enable (OE) input. The active LOW Write Enable (WE) controls both writing and reading of the memory.

Features

• Low standby power
• Fully static operation: no clock or refresh required
• TTL compatible inputs and outputs
