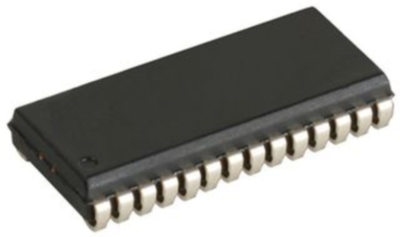

IS61C256AL-12JLI-TR | Integrated Silicon Solution INC
DRAM, 256 kbit, SOJ-28, Integrated Silicon Solution INC IS61C256AL-12JLI-TR
Order No.: 53S7033
EAN: 4099879150905
MPN:
IS61C256AL-12JLI-TR
No longer available from manufacturer
Unit Price (€ / pc.)
1.4518 € *
Standard delivery time from the manufacturer is: 1 Week
High-Speed CMOS Static RAM, IS61C256AL-12JLI-TR, ISSI
The IS61C256AL-12JLI-TR is a very high-speed, low power, 32,768 word by 8-bit static RAMs. It is fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields access times as fast as 10 ns maximum.
Features
- TTL compatible interface levels
- Single 5V power supply
- Lead-free available
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOJ-28 | |
| Assembly | SMD | |
| Memory size | 256 kbit | |
| Voltage | 4.5-5.5 V | |
| Access time | 12 s | |
| Clock frequency | 83 MHz | |
| Technology | DRAM | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Original Packaging | Reel with 1,000 pieces |
| MSL | MSL 3 |
| Customs tariff number | 85423231 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
