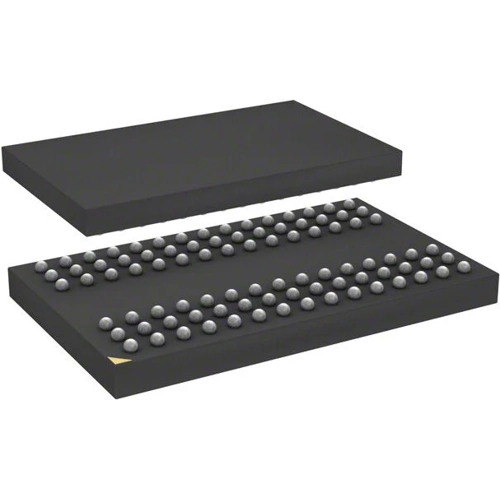

IS42SM32160E-75BLI | Integrated Silicon Solution INC

Synchronous dram, IS42SM32160E-75BLI, Integrated Silicon Solution INC

The IS42SM32160E-75BLI is a mobile 536,870,912-bit CMOS synchronous DRAM organized as 4 banks of 4,194,304 words × 32 bits. The product offers fully synchronous operation and is referenced to the positive edge of the clock. All inputs and outputs are synchronized with the rising edge of the clock input. The data path is internally pipelined to achieve high bandwidth. All input and output voltage levels are compatible with LVCMOS.

Features

• Auto refresh and self refresh
• All inputs and outputs referenced to the positive edge of the system clock
• Internal 4 banks operation
• Burst Read Single Write operation
• Programmable Driver Strength Control
• Automatic precharge, includes CONCURRENT Auto Precharge Mode and controlled Precharge
