DCK1001GR.15 | INFRALAN

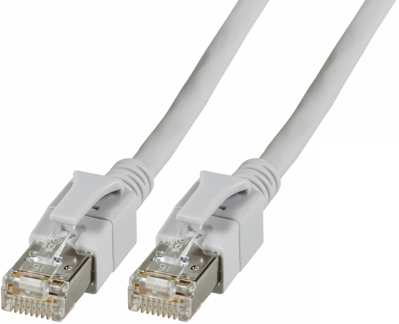

Patch cable with illuminated plugs, RJ45 plug, straight to RJ45 plug, straight, Cat 6A, S/FTP, LSZH, 15 m, gray, DCK1001GR.15
Order No.: 87F2102
EAN: 4099891055691
MPN:
DCK1001GR.15
Unit Price (€ / pc.)
40.5433 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
40.54 € *
Price list
Quantity
Price per unit*
1 pcs.
40.5433 €
10 pcs.
38.0800 €
25 pcs.
35.6286 €
50 pcs.
33.1653 €
100 pcs.
30.7139 €
*incl. VAT plus shipping costs
Subject to prior sale
RJ45 patch cables with illuminated plugs, halogen-free, Cat. 6A S/FTP, type INFRALAN DCK1001.
With illuminated plugs for tracing the cable path; Plugs: 2 x RJ45, 360°, shielded, with molded anti-kink bushing with latch protection. Wiring: 1 to 1. Cable: 4 x 2 x AWG 27, twisted pair. Overall shielding: braid. Twisted pair shielding: foil. Outer insulation: FRNC. Note: the detectors listed below are used in both RJ45 plugs to excite the LEDs in order to ensure the reliable identification of the patching.
Technical attributes (type, color, length): DCK1001GR.15, gray, 15 m
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Category | Cat 6A | |
| Cable type | S/FTP | |
| Material | LSZH | |
| Cable length | 15 m | |
| AWG cross-section | AWG 27 | |
| Connection (1) | RJ45 plug, straight | |
| Connection (2) | RJ45 plug, straight | |
| Halogen free | Yes | |
| Pin configuration | 1:1 | |
| Colour | gray | |
| Detent lever protection available | Yes | |
| Version | patch cable with illuminated plugs |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444210 |
| Country of origin | QU |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
