MK7100.100-CPR | INFRALAN

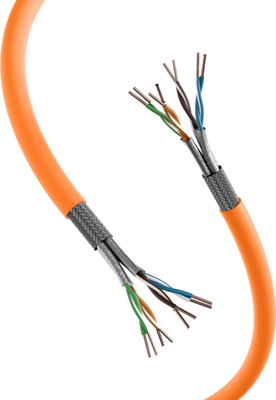

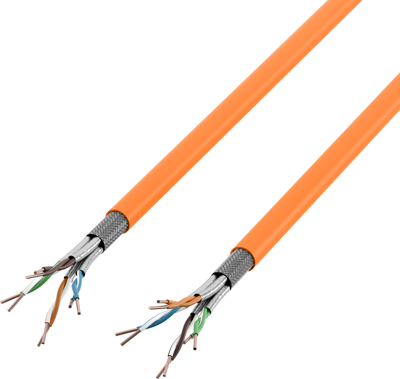

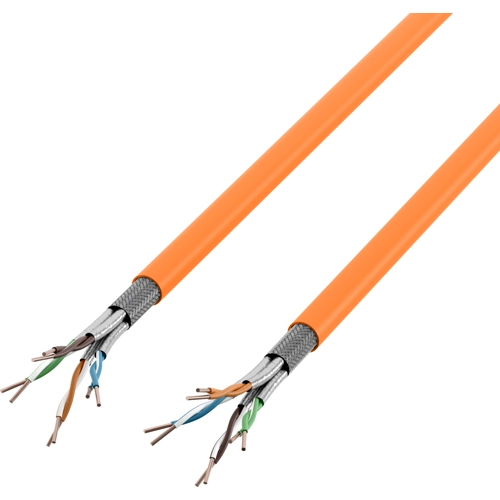

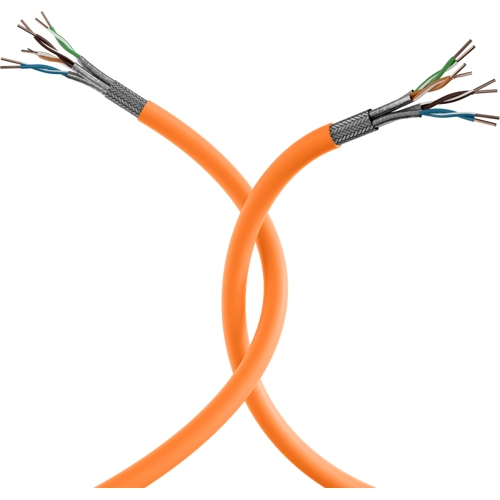

FRNC-B network cable, Cat 7A, LAN, 8-wire, AWG 22, orange, MK7100.100-CPR
Network cable, MK7100.100-CPR, INFRALAN
The Delta certified installation cable MK7100.100-CPR is constructed for transmissions up to 1200 MHz and exceeds with the electrical transmission properties the requirements of the category 7A. Suitable for structured cabling of Class E, EA, F and FA according to ISO/IEC 11801 (AMD 2:2009) resp. EN 50173-1 (2009). The twisted pairs are protected against interferences with a shielding foil (PiMF) and a total shielding. This excellent protection also prevents the radiation of signals out of the cables. The shielding ensures the compliance of emitted interferences according to class B EN 55022 and the interference resistance according to EN 55024. The stranding of the twisted pairs is optimized so that the delay skew between the pairs at the greatest possible uncoupling (crosstalk) is minimum.
| Filter | Property | Value |
|---|---|---|
| Version | network cable | |
| Number of cores | 8 | |
| AWG cross-section | AWG 22 | |
| Outer diameter | 8.4 mm | |
| Bussystem | LAN | |
| Category | Cat 7A | |
| Colour | orange | |
| Material | FRNC-B | |
| Cable material | copper, tin-plated | |
| Core insulation material | PE | |
| Shielding | shielded | |
| Halogen free | Yes | |
| Drag chain suitable | No | |
| Temperature range (unmoved) | -20 °C to 60 °C | |
| Temperature range (active) | -20 °C to 50 °C |
| Property | Value |
|---|---|
| Country of origin | CN |

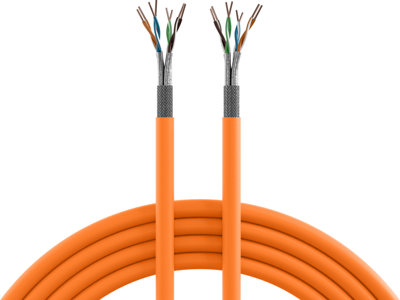

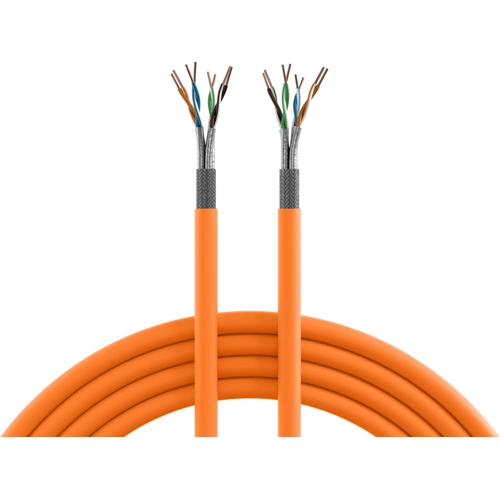

| Original Packaging | Reel with 100 meters |
| Customs tariff number | 85444290 |
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
