FRNC-B network cable, Cat 7A, LAN, 8-wire, AWG 23, yellow, 99985.100-CPR

Order No.: 26P2742
EAN: 4049759185978
MPN:
99985.100-CPR

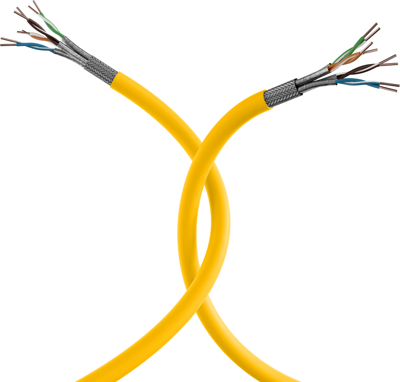

99985.100-CPR INFRALAN Data Cables Image 1

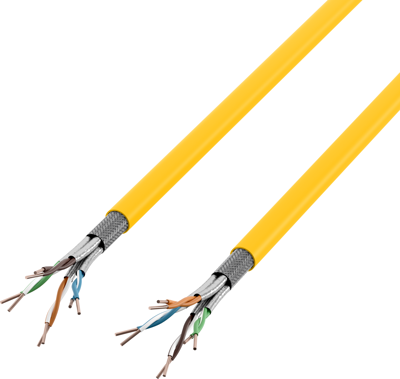

99985.100-CPR INFRALAN Data Cables Image 2

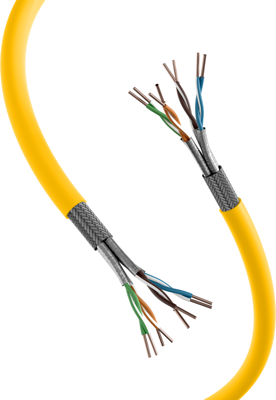

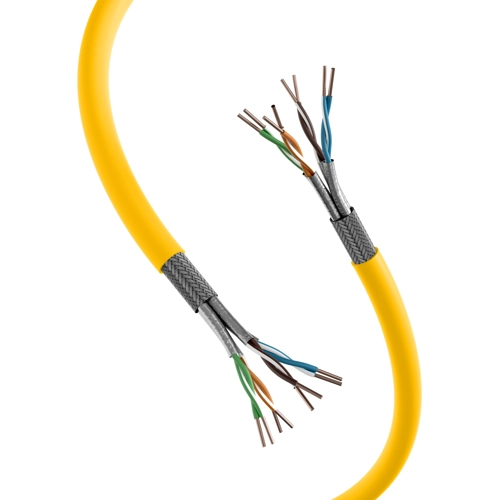

99985.100-CPR INFRALAN Data Cables Image 3

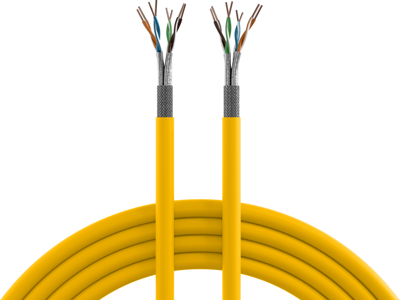

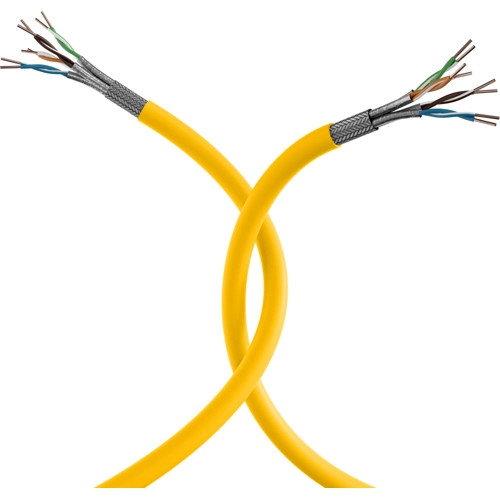

99985.100-CPR INFRALAN Data Cables Image 4
Image may differ
Unit Price (€ / pck.)
140.063 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
140.06 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pck.
140.063 €

Network cable, 99985.100-CPR, INFRALAN

The installation cable 99985.100-CPR is constructed for transmissions up to 1250 MHz and exceeds with the electrical transmission properties and requirements of the category 7A. Suitable for structured cabling of Class E, EA, F and FA according to ISO/IEC 11801 (AMD 2:2009) resp. EN 50173-1 (2009).

Technical specifications
Core insulation material PE
Colour yellow
Number of cores 8
Outer diameter 7.7 mm
Drag chain suitable No
AWG cross-section AWG 23
Halogen free Yes
Bussystem LAN
Version network cable
Category Cat 7A
Material FRNC-B
Cable material copper, tin-plated
Shielding shielded
Temperature range (unmoved) -20 °C to 60 °C
Temperature range (active) 0 °C to 50 °C
Logistics
Customs tariff number 85444920
Original Packaging Reel with 100 meters
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
