99980DX.100-CPR | INFRALAN

FRNC-B network cable, Cat 7, 16-wire, 0.26 mm², AWG 23, orange, 99980DX.100-CPR

Order No.: 26P2793
EAN: 4049759180799
MPN:
99980DX.100-CPR
99980DX.100-CPR INFRALAN Data Cables Image 1

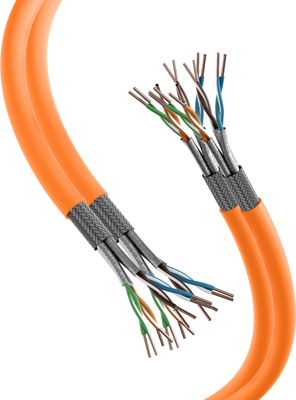

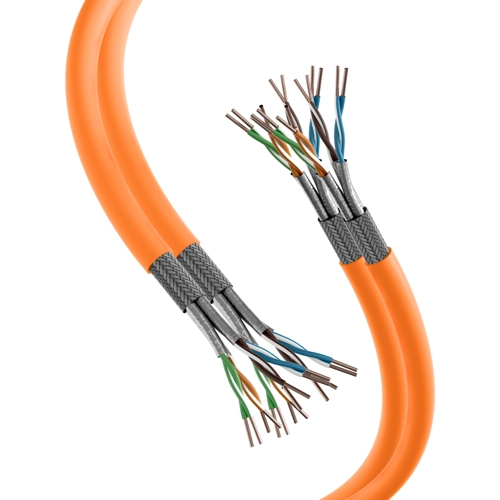

99980DX.100-CPR INFRALAN Data Cables Image 2

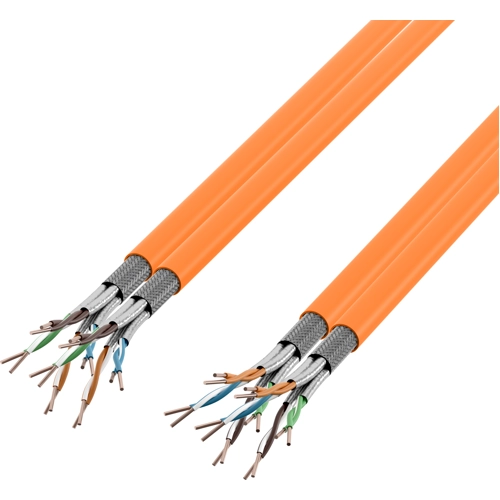

99980DX.100-CPR INFRALAN Data Cables Image 3

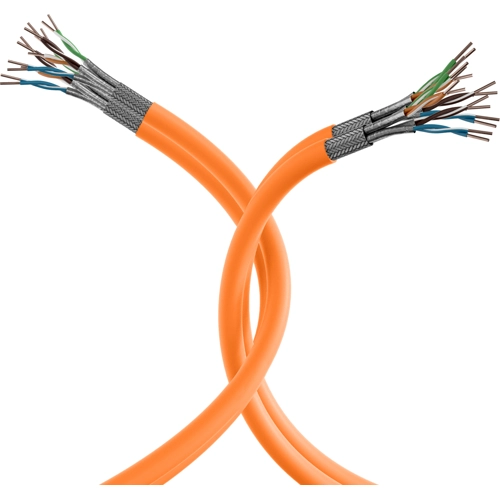

99980DX.100-CPR INFRALAN Data Cables Image 4
Image may differ
Unit Price (€ / pck.)
200.2532 € *
Available in 5 Days: 1 pck. - if ordered today
Total Price:
200.25 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pck.
200.2532 €

Network cable, 99980DX.100-CPR, INFRALAN

The installation cable 99980.x-CPR is constructed for transmissions up to 1000 MHz and exceeds the requirements of the category 7 with the electrical transmission properties. With this cable transmission rates up to 10 GBit according to IEEE 802.3 are possible.

Technical specifications
Core insulation material PE
Colour orange
Number of cores 16
Drag chain suitable No
AWG cross-section AWG 23
Halogen free Yes
Cable cross-section 0.26 mm²
Version network cable
Category Cat 7
Material FRNC-B
Cable material copper, bright
Shielding shielded
Temperature range (unmoved) -20 °C to 60 °C
Temperature range (active) 0 °C to 50 °C
Logistics
Customs tariff number 85444920
Original Packaging Ring with 11.6 meters
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
