99965.305-CPR | INFRALAN

LSZH sheathed line, Cat 6A, 8-wire, 0.26 mm², AWG 23, blue, 99965.305-CPR

Order No.: 26P2790
EAN: 4049759247782
MPN:
99965.305-CPR

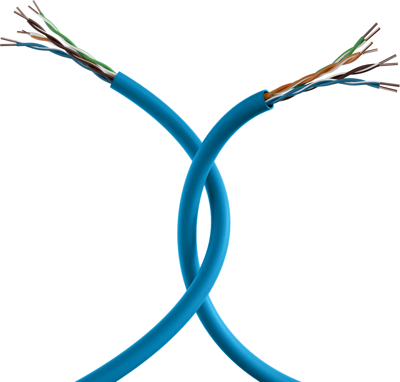

99965.305-CPR INFRALAN Data Cables Image 1

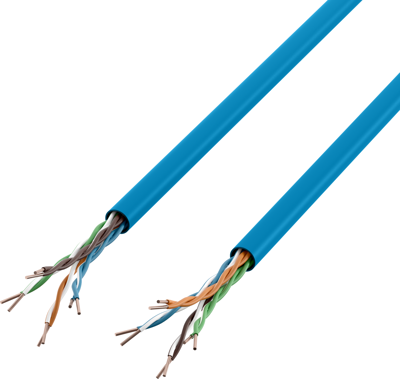

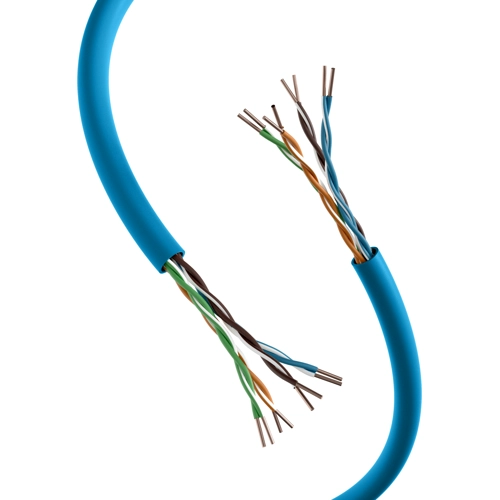

99965.305-CPR INFRALAN Data Cables Image 2

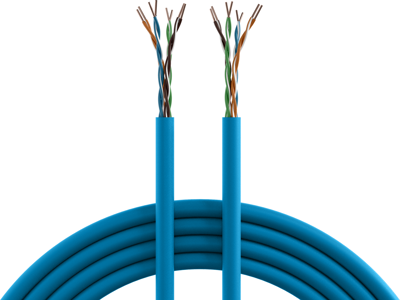

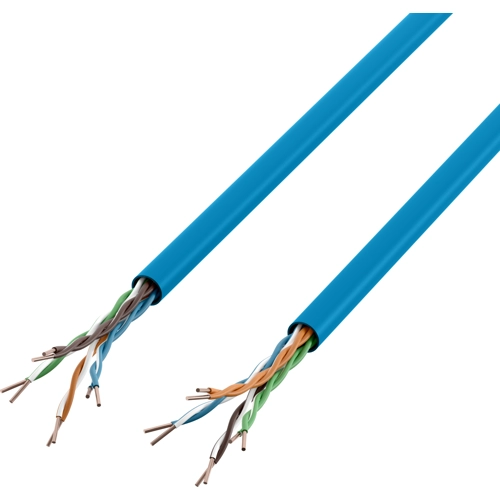

99965.305-CPR INFRALAN Data Cables Image 3

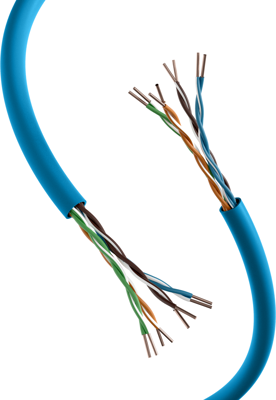

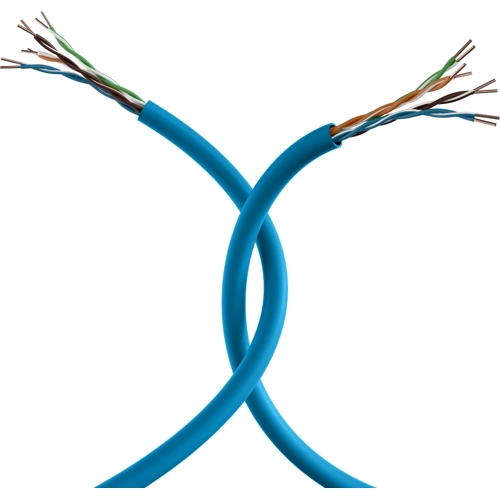

99965.305-CPR INFRALAN Data Cables Image 4
Image may differ
Unit Price (€ / pck.)
220.8521 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
220.85 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pck.
220.8521 €

Installation cable, 99965.305-CPR, INFRALAN

The U/UTP Cat.6A installation cable is designed for transmissions up to 500MHz and complies with Cat.6A. With this cable, transmission rates of up to 10Gbit Ethernet are possible. Due to the small outer diameter of only 6.6 mm, the cable is also suitable for feed-throughs in narrow cable ducts. Thanks to the B2ca standard according to the Construction Products Regulation and its cable structure of 4x2xAWG23/1, the cable can be used in all areas of installation in buildings.

Technical specifications
Core insulation material PE
Colour blue
Number of cores 8
Outer diameter 6.6 mm
Drag chain suitable No
AWG cross-section AWG 23
Halogen free Yes
Cable cross-section 0.26 mm²
Version network cable
Category Cat 6A
Material LSZH
Cable material copper, bright
Shielding unshielded
Temperature range (unmoved) -15 °C to 75 °C
Temperature range (active) 0 °C to 60 °C
Logistics
Country of origin CN
Customs tariff number 85444920
Original Packaging Reel with 16.38 meters
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
