BDW84D | Inchange Semiconductor

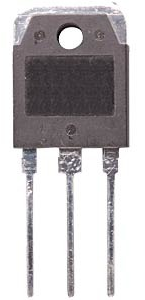

Bipolar junction transistor, PNP, -15 A, -120 V, THT, TO-3PN, BDW84D

Order No.: 15S5378
EAN: 4099879028570
MPN:
BDW84D
Series: BDW84
BDW84D Inchange Semiconductor Bipolar Transistors
Image may differ
Unit Price (€ / pc.)
2.0825 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
208.25 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 pcs.
2.0825 €

PNP power transistor, BDW84D, ISC

This silicon PNP power transistor is designed for use in power linear and switching applications.

Features

  • With TO-3PN package
  • High DC current gain
Technical specifications
Assembly THT
Enclosure TO-3PN
max.voltage between collector and base Vcbo -120 V
Version PNP
min. operating temperature -65 °C
Transit frequency fTmin 1 MHz
max. operating temperature 150 °C
max.voltage between collector and emitter Vceo -120 V
Collector current -15 A
Logistics
Country of origin CN
Customs tariff number 85412900
Original Packaging Bar with 25 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
