UIT302 | IFM electronic
Ultrasonic reflex scanner, IO-Link, PNP/NPN, 250-2500 mm, 1 Form A (N/O) + 1 Form B (N/C), 10-30 VDC, UIT302
Unit Price (€ / pc.)
833.3451 € *
Standard delivery time from the manufacturer is: 1 Week

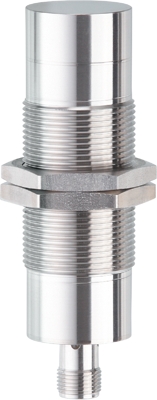

Ultrasonic diffuse reflection sensor, UIT302, IFM electronic
Features
- Continuous level and object detection for harsh environments
- Resistant to aggressive media
- Long range
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching frequency | 1 Hz | |
| Connection | M12-connector | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Degree of protection (IP) | IP65/IP67/IP68/IP69K | |
| Activation time | 600 ms | |
| switching current | 50 mA | |
| Version | IO-Link, PNP/NPN | |
| Product type | ultrasonic diffuse reflection probe | |
| Voltage | 10-30 VDC | |
| Detection range | 250-2500 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
