UGT526 | IFM electronic
UGT526, ultrasonic diffuse reflection sensor, M18infrared light, Lens type standard, (28 x 21)...(
Order No.: 82P8713
EAN: 4021179311861
MPN:
UGT526
Unit Price (€ / pc.)
323.7990 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
323.80 € *
Price list
Quantity
Price per unit*
1 pcs.
323.7990 €
3 pcs.
315.6356 €
*incl. VAT plus shipping costs
Subject to prior sale

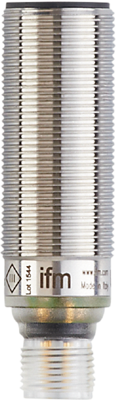

Ultrasonic diffuse reflection sensor, UGT526, IFM electronic
Features
- Output function normally open / normally closed programmable
- Clearly visible LED for indicating switching status and echo
- Non-contact detection independent of colour, transparency or surface characteristics of the object
- Particularly space-saving design for use where space is restricted
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Degree of protection (IP) | IP67 | |
| Switching frequency | 5 Hz | |
| Version | PNP | |
| Connection | M12-connector | |
| switching current | 35 mA | |
| Detection range | 80-1200 mm | |
| Voltage | 10-30 VDC | |
| Product type | ultrasonic diffuse reflection probe |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
