UGT520 | IFM electronic
UGT520, ultrasonic diffuse reflection sensor, M18infrared light, Lens type standard, (28 x 21)...(
Order No.: 82P8707
EAN: 4021179298322
MPN:
UGT520
Unit Price (€ / pc.)
429.0188 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
429.02 € *
Price list
Quantity
Price per unit*
1 pcs.
429.0188 €
3 pcs.
418.2136 €
*incl. VAT plus shipping costs
Subject to prior sale

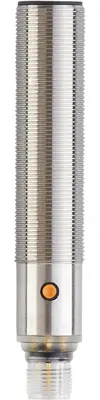

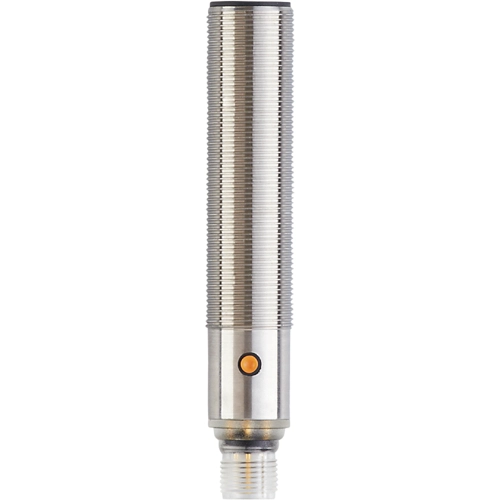

Ultrasonic diffuse reflection sensor, UGT520, IFM electronic
Features
- Very large detection range
- Intuitive setting of the detection range via pushbutton
- Clearly visible LED for indicating switching status and echo
- With programmable switching output and scalable analogue output
- Non-contact detection independent of colour, transparency or surface characteristics of the object
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Degree of protection (IP) | IP67 | |
| Switching frequency | 2 Hz | |
| Version | analog signal, NPN | |
| Connection | M12-connector | |
| switching current | 55 mA | |
| Activation time | 300 ms | |
| Detection range | 200-2200 mm | |
| Voltage | 10-30 VDC | |
| Product type | ultrasonic diffuse reflection probe |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
