UGT504 | IFM electronic
UGT504, ultrasonic diffuse reflection sensor, M18infrared light, Lens type standard, (28 x 21)...(
Order No.: 82P8691
EAN: 4021179298162
MPN:
UGT504
Unit Price (€ / pc.)
355.7148 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
355.71 € *
Price list
Quantity
Price per unit*
1 pcs.
355.7148 €
3 pcs.
346.7541 €
*incl. VAT plus shipping costs
Subject to prior sale

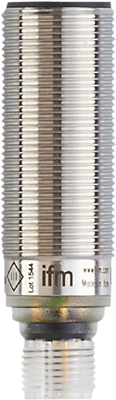

Ultrasonic diffuse reflection sensor, UGT504, IFM electronic
Features
- Particularly space-saving design for use where space is restricted
- Precise linearised current output
- Non-contact detection independent of colour, transparency or surface characteristics of the object
- Clearly visible LED for indicating switching status and echo
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP67 | |
| Connection | M12-connector | |
| switching current | 35 mA | |
| Activation time | 500 ms | |
| Detection range | 60-800 mm | |
| Voltage | 10-30 VDC | |
| Product type | ultrasonic diffuse reflection probe |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
