UGR501 | IFM electronic
UGR501, ultrasonic retro-reflective sensor, M18 xinfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P8669
EAN: 4021179297981
MPN:
UGR501
Unit Price (€ / pc.)
410.6571 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
410.66 € *
Price list
Quantity
Price per unit*
1 pcs.
410.6571 €
3 pcs.
400.3041 €
*incl. VAT plus shipping costs
Subject to prior sale

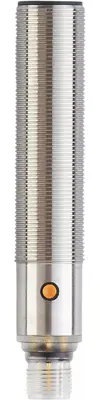

Ultrasonic retro-reflective sensor, UGR501, IFM electronic
Features
- Very large detection range
- Intuitive setting of the detection range via pushbutton
- Clearly visible LED for indicating switching status and echo
- Output function normally open / normally closed programmable
- Non-contact detection independent of colour, transparency or surface characteristics of the object
Technical specifications
| Detection range | 2200 mm | |
| Degree of protection (IP) | IP67 | |
| Switching frequency | 2 Hz | |
| switching current | 55 mA | |
| Product type | ultrasonic reflex barrier | |
| Voltage | 10-30 VDC | |
| Connection | M12-connector | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85365019 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
