TN7511 | IFM electronic

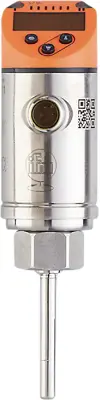

Temperature probe, with display, IO-Link, PNP/NPN, rod length 45 mm, -50 to 150 °C, Ø 34 mm, Pt1000 sensor, TN7511
Order No.: 82P8596
EAN: 4021179294270
MPN:
TN7511
Unit Price (€ / pc.)
495.635 € *
Standard delivery time from the manufacturer is: 1 Week
Electronic temperature sensor, TN7511, IFM electronic
Features
- Very large temperature evaluation range
- Two switching outputs, one of them with IO-Link communication interface
- Intuitive and user-friendly 3-pushbutton control
- Red/green display for clear identification of the acceptable range
- Clearly visible LEDs for switching status indication
Technical specifications
| Product type | temperature sensor | |
| Version | with display, IO-Link, PNP/NPN, rod length 45 mm | |
| Technology | Pt1000 sensor | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 150 °C | |
| diameter | 34 mm | |
| Connection | M12-connector | |
| Assembly | M18 internal thread |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 90251900 |
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
