TAA431 | IFM electronic

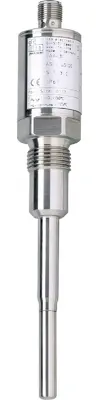

Temperature transmitter, analog signal, rod length 87.5 mm, -10 to 150 °C, Ø 30 mm, Pt1000 sensor, TAA431
Unit Price (€ / pc.)
504.0364 € *
Standard delivery time from the manufacturer is: 1 Week
Temperature transmitter, TAA431, IFM electronic
Features
- High precision across the entire temperature measurement range
- Particularly good response dynamics and very short power-on delay time
- Robust stainless steel housing with very high pressure rating
- With AS-i interface
- High protection rating for the requirements of harsh industrial environments
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | temperature transmitter | |
| Version | analog signal, rod length 87.5 mm | |
| Technology | Pt1000 sensor | |
| min. operating temperature | -10 °C | |
| max. operating temperature | 150 °C | |
| diameter | 30 mm | |
| Connection | M12-connector | |
| Assembly | G 1/2 external thread |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 90251900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
