AL2230 | IFM electronic

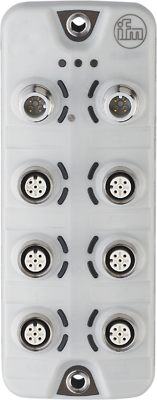

Sensor-actuator distributor, 6 x M12, AL2230
Order No.: 82P1350
EAN: 4021179312028
MPN:
AL2230
Unit Price (€ / pc.)
338.6978 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
338.70 € *
Price list
Quantity
Price per unit*
1 pcs.
338.6978 €
3 pcs.
330.1655 €
*incl. VAT plus shipping costs
Subject to prior sale
IO-Link output module, AL2230, IFM electronic
Features
- Six ports with two binary outputs each for twelve actuators
- Two separate voltage supplies rated up to 1.8 A each
- High protection rating for the requirements of the food and beverage industry
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP65/IP67/IP69K | |
| Bus Output | 12 x M12 (5 pole, A coded) | |
| Power Input | M12 | |
| IO Ports | 6 x M12 | |
| Signal type | PNP |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85176200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
