EVF566 | IFM electronic

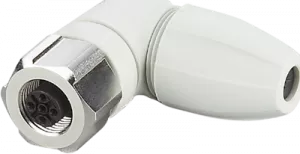

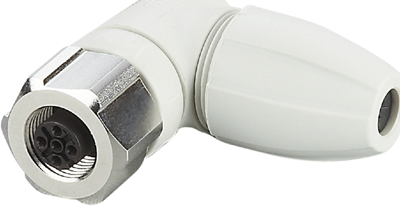

Jack, M12, 5 pole, screw connection, angled, EVF566
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
41.7690 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
41.77 € *
Price list
Quantity
Price per unit*
1 pcs.
41.7690 €
3 pcs.
39.9483 €
5 pcs.
38.3061 €
*incl. VAT plus shipping costs
Subject to prior sale
Wirable socket, EVF566, IFM electronic
Features
- Gold-plated contacts for reliable electrical connections
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Safe cable connection with screw terminals
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | jack | |
| Pin number | 5 pole | |
| Thread size | M12 | |
| Coding | A | |
| Orientation | angled | |
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Degree of protection (IP) | IP65/IP67/IP68/IP69K |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
