EVF565 | IFM electronic

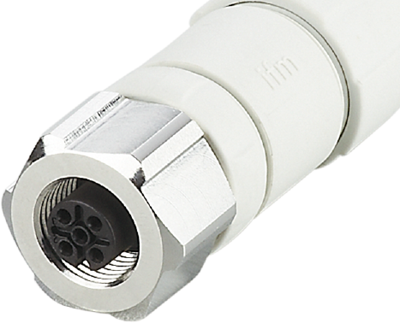

Jack, M12, 5 pole, screw connection, straight, EVF565
Order No.: 82P4296
EAN: 4021179313315
MPN:
EVF565
Unit Price (€ / pc.)
40.7813 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
40.78 € *
Price list
Quantity
Price per unit*
1 pcs.
40.7813 €
3 pcs.
39.0082 €
5 pcs.
37.4017 €
*incl. VAT plus shipping costs
Subject to prior sale
Wirable socket, EVF565, IFM electronic
Features
- Gold-plated contacts for reliable electrical connections
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Safe cable connection with screw terminals
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 5 pole | |
| Degree of protection (IP) | IP65/IP67/IP68/IP69K | |
| Coding | A | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Contact connection | screw connection | |
| Thread size | M12 | |
| Product type | jack |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
