E11255 | IFM electronic

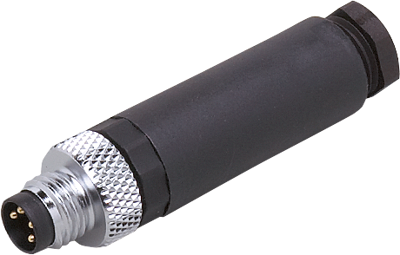

Plug, M8, 4 pole, screw connection, straight, E11255
Unit Price (€ / pc.)
16.1245 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
16.12 € *
Price list
Quantity
Price per unit*
1 pcs.
16.1245 €
5 pcs.
15.3272 €
10 pcs.
14.6013 €
15 pcs.
13.7564 €
*incl. VAT plus shipping costs
Subject to prior sale
Wirable plug, E11255, IFM electronic
Features
- Gold-plated contacts for reliable electrical connections
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Safe cable connection with screw terminals
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP67 | |
| Orientation | straight | |
| Coding | A | |
| Thread size | M8 | |
| contact surface | gold-plated | |
| Product type | plug | |
| Contact connection | screw connection | |
| Pin number | 4 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
