E10887 | IFM electronic

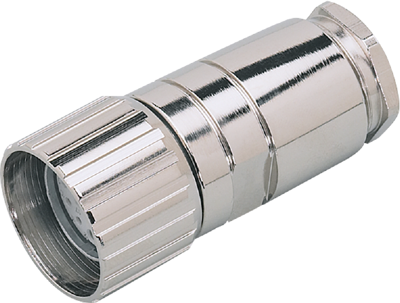

Jack, M23, 19 pole, solder connection, straight, E10887
Unit Price (€ / pc.)
75.1128 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
75.11 € *
Price list
Quantity
Price per unit*
1 pcs.
75.1128 €
3 pcs.
71.8522 €
5 pcs.
68.8653 €
*incl. VAT plus shipping costs
Subject to prior sale
Wirable socket, E10887, IFM electronic
Features
- For splitter boxes with M23 connector
- Gold-plated contacts for reliable electrical connections
- Robust design for use in harsh industrial environments
- Wide operating temperature range
- Safe cable connection due to soldering
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | jack | |
| Pin number | 19 pole | |
| Thread size | M23 | |
| Orientation | straight | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
