EVCA77 | IFM electronic

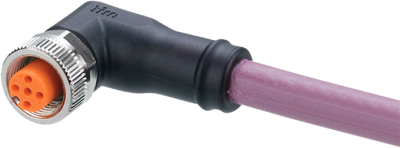

Sensor actuator cable, M12 cable socket, angled, A to open end, 5 pole, 15 m, PUR, purple, 4 A, EVCA77
Unit Price (€ / pc.)
255.1360 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
255.14 € *
Price list
Quantity
Price per unit*
1 pcs.
255.1360 €
3 pcs.
248.4482 €
*incl. VAT plus shipping costs
Subject to prior sale
Connecting cable, EVCA77, IFM electronic
Features
- Resistant to oils and coolants
- Permanent, reliable sealing even when mounted without tools
- Big cable cross-section to reduce the voltage drop and terminating resistor to avoid interference
- Vibration and shock resistant thanks to coupling ring with locking mechanism
- Mechanical end stop to protect the O-ring from destruction
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | M12 cable socket, angled, A | |
| Connection (2) | open end | |
| Pin number | 5 pole | |
| Cable length | 15 m | |
| Colour | purple | |
| Material | PUR | |
| Degree of protection (IP) | IP67/IP68/IP69K | |
| LED display | No | |
| max. Voltage | 32 V | |
| Rated current | 4 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
